IntroductionTextureWrinkleTypeEpoxy resin seriesMain MaterialEpoxy resin,curing agent,filler,pi
Email:services@moutainchem.com

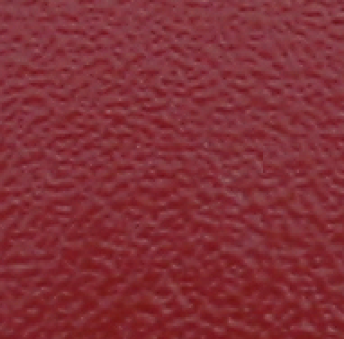

| Texture | Wrinkle | |
| Type | Epoxy resin series | |
| Main Material | Epoxy resin,curing agent,filler,piment,adhesive | |
| Advantage | Good adhesion,good mechanical property,strong coating film, | |
| excellent insulation,anticorrosion,energy-efficient,convenient operation. | ||
| Application Field | Apply to anticorrosive and insulative products: | |
| Anticorrosion pipeline,rebar,bridge,steel structure, | ||
| pylon,tank,marine fittings,electric control cabinet, | ||
| switch components,lighting sets. | ||
| Application Condition | Electrostatic spray/Triboelectric gun spray. | |
| Recommended curing condition:200 degree centigrade for 12 minutes | ||
| (object surface temperature),range from 190 degree centigrade | ||
| for 20 minutes to 210 degree centigrade for 8minutes. | ||
| Recommended film thickness:50~80um, range from 40~150um | ||
| Physical Property | Specific gravity | 1.4~1.8g/cm3 as per formula and color |
| Particle size | average 35~40um | |
| Test Condition | Substrate | 0.5mm thickness cold rolled steel sheet |
| Pretreatment | Remove rust and grease | |
| Film thickness | 50~80um | |
| Curing temperature | 200 degree centigrade for 12 minutes | |
| Mechanical Property | Pencil hardness | ISO 15184:1998.2H |
| Adhesion (by griding) | GB/T 9286-1998.0grade | |
| Impact test | GB/T 1732-1993.≥50 kg.cm | |
| Bending test | GB/T 6742 ,≤2mm | |
| Cupping test | GB/T 9753.≥7mm | |
| Chemical and Durability Test | Salt spray test | GB/T 1771.≥1000 hours,no obvious change , |
| crossion width at cross≤2mm | ||
| Heat and moisture test | GB/T 1740.≥1000 hours,no change | |
| Package | Inside by two-ply PVC bag,outside by carton,net weight 20kg | |
| Storage Condition | Store in dry ventilated room,temperature under 35 degree centigrade, | |
| avoid direct sunlight. | ||
| Shelf Life | Six months | |
| Health and Safty | Raw material of powder coating don’t contain toxic substance, | |
| no toxic gas produced during curing.Please wear dust mask in operation | ||
| to avoid inhelation of powder.Please avoide prolonged skin contact | ||
| with powder,wash out powder with soap and water. | ||
